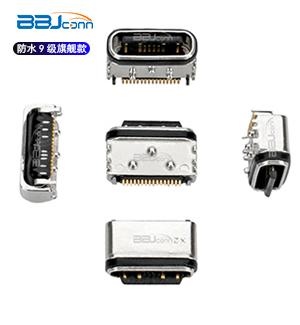

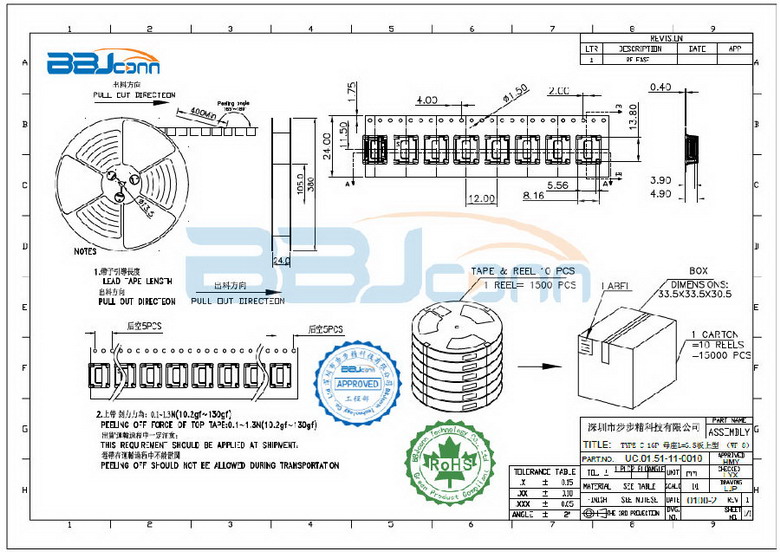

Type-c high current connector

Be

TYPE-C fast charging products are widely used in mobile power supply, mobile phones, Bluetooth headsets, audio, notebooks, and can also be used as data, audio, video and charging, laying the foundation for high-speed data, digital audio, high-definition video, fast charging, and multi-device sharing. .

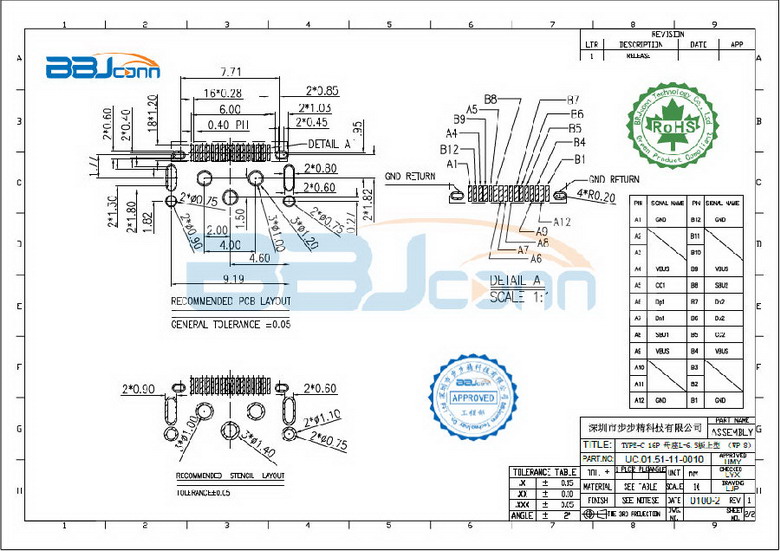

TYPE-C fast chargeThe utility model includes an insulating body, a conductive terminal and a shielding shell; the insulating body has an insertion slot with an opening facing forward; the conductive terminal is arranged on the insulating body, and the conductive terminal includes a base part, a welding part integrally extending from the rear end of the base part, and a base part. The contact part is integrally extended from the front end, and the contact part is located in the insertion groove; the shielding shell is wrapped outside the insulating body; wherein, two sides of the base part are formed with through grooves for reducing the effective conductive area and for heat dissipation.

TYPE-C high current connector related parameters:

Rated current: 5A

Contact resistance: 10mΩmax

Insulation resistance: 100MΩmin100VDC

Wetting property: temperature 265±5 degrees Celsius, time 5±0.5s

Insertion force: 2.04kg(8N)min, 2.04kg(20N)max

Pull-out force: 0.81kg(8N)min, 2.04kg(20N)max.

Waterproof grade: over IP67\/IP68IPX7

Product life: more than 10000 times
